Instruments Set Combined Instruments Set
Large Fragment Lock Plates Instruments Set (Modified)
AS435M Large Fragment Safety Lock Instruments Set
Codes Set Consisting of : Units

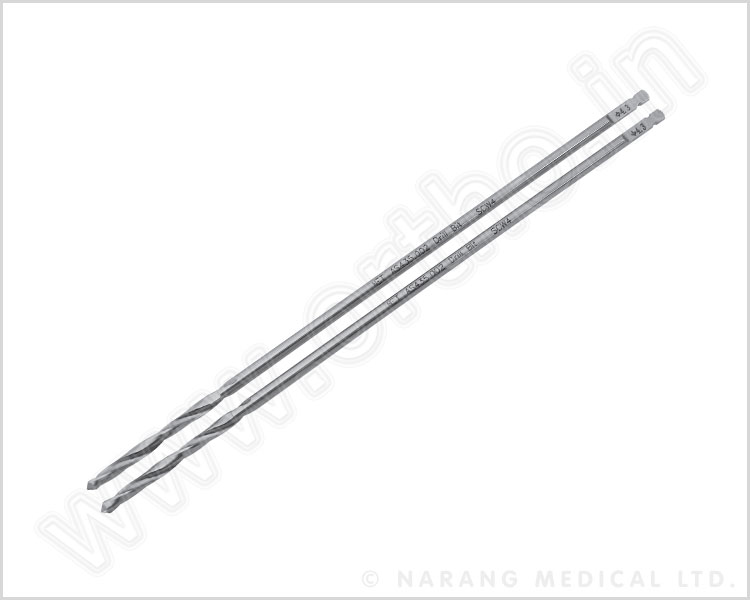

AS435.002 Drill Bit Ø 4.3mm, Length 221mm, Calibrated, 2-flute, for Quick Coupling 2

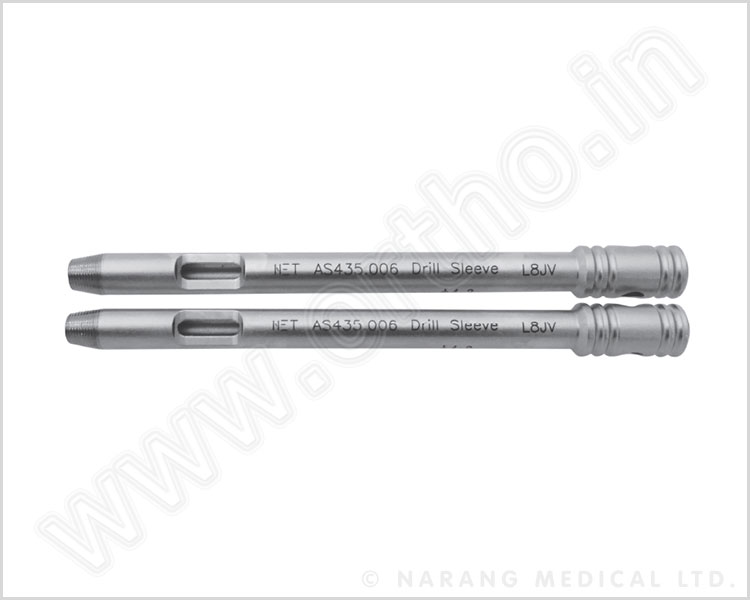

AS435.006 4.3mm Drill Sleeve for 5.0mm Safety Lock Screws 1

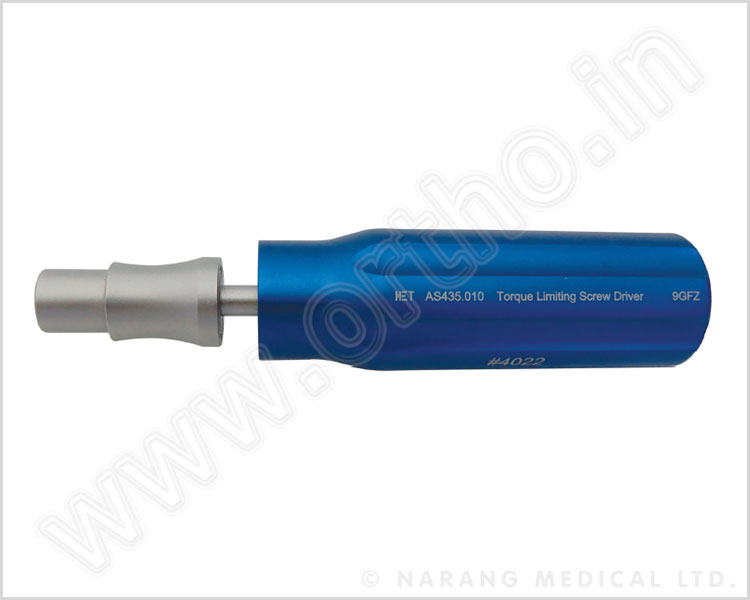

AS435.010 Torque Limiting Screw Driver, 3.5mm Tip 1
AS435.014 T-Handle for Quick Coupling 1
AS435.018 HSS Drill Bit Ø 3.5mm (Blue Coating) 2
AS435.022 Extraction Screw (Left Hand Thread), Conical, for Screws Ø 4.5mm to 6.5mm 1
AS435.026 Centering Sleeve for Kirschner Wire Ø 2.0mm, Length 125mm 1

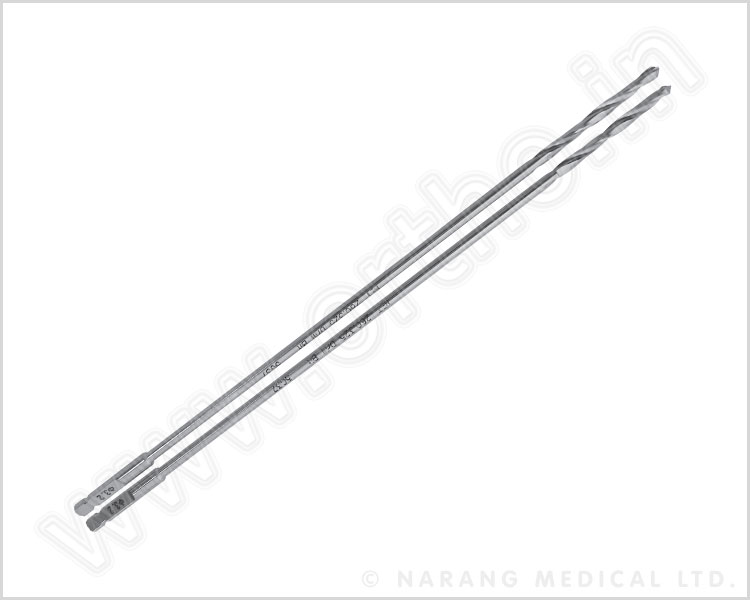

260.320 Drill Bit - Quick Coupling End, Ø 3.2mm, Length 130mm 2
264.040 Bone Tap - Quick Coupling End, Ø 4.5mm, Cortex Type. 1

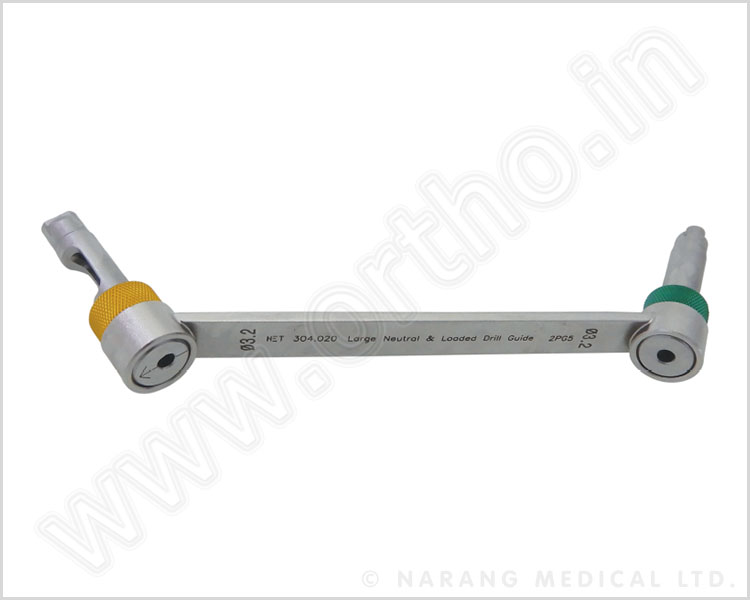

304.020 Large Neutral & Loaded Drill Guide 1

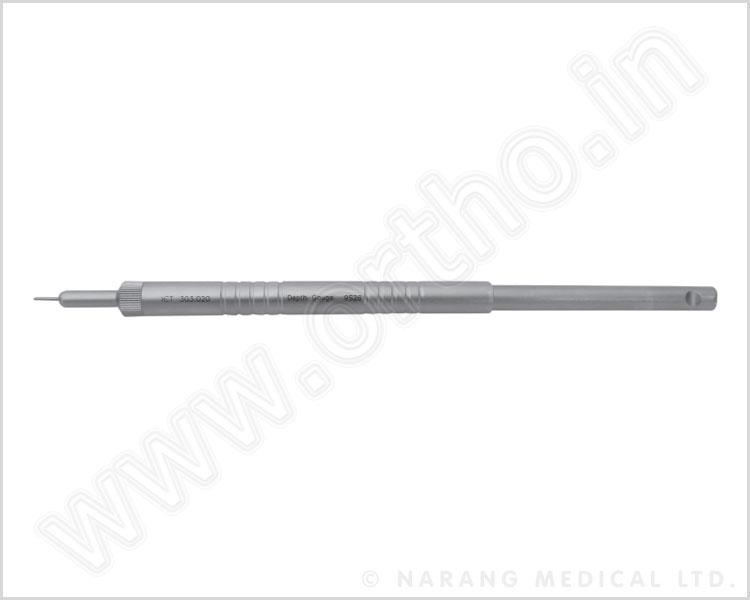

303.020 Depth Gauge for 4.5mm & 6.5mm Screws 1
185.751 Kirschner Wire, Smooth Ø 2.0mm, Length: 200mm with Trocar Tip Both End 3
435.030 Empty Container
Optional Instruments
AS435.034 Cannulated Drill Bit Ø 5.0mm, for 7.3 Cannulated Cancellous Lock Screws, SS
AS435.038 Threaded Drill Sleeve for 7.3mm Cannulated Cancellous Lock Screws
AS435.042 Cannulated Drill Bit Ø 4.3mm, for 5.0 Cannulated Lock Screws, SS
AS435.046 Threaded Drill Sleeve for 5.0mm Cannulated Lock Screws
AS435.050 Threaded Drill Sleeve for 6.5mm Cancellous Lock Screw
AS435.054 Drill Bit Ø 4.3mm for 6.5mm Cancellous Lock Screws

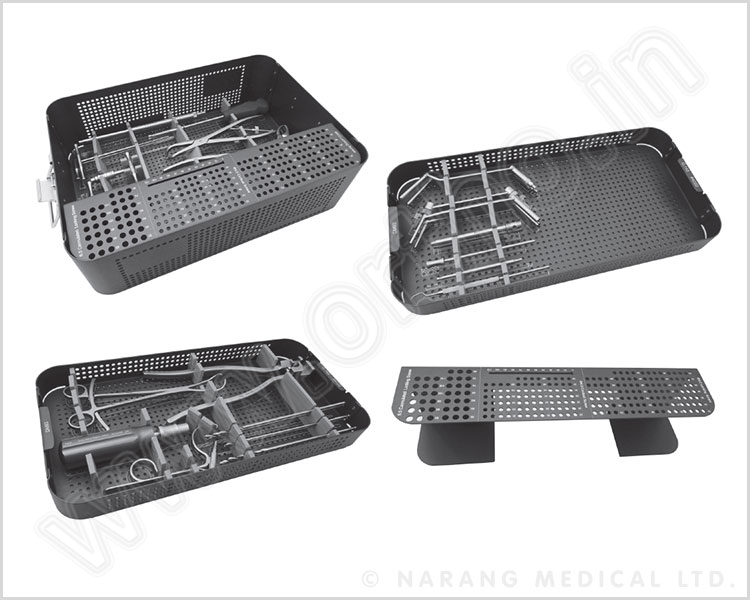

Large Fragment Instrument Set - Combo
AS145 Large Fragment Instrument Set Combo with Standard Instruments & Locking Instruments.
Codes Set Consisting of : Units
Standard Instruments
260.320 Drill Bit (Quick Coupling), 3.2mm x 130mm 1

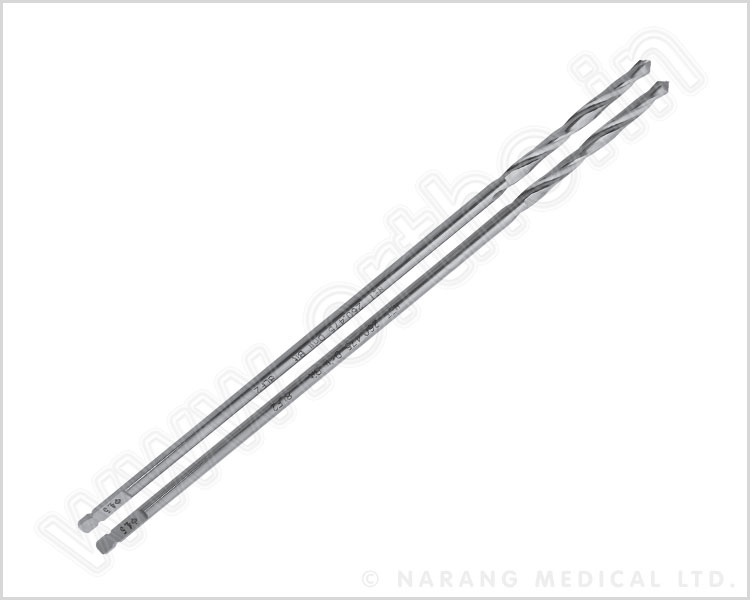

260.450 Drill Bit (Quick Coupling), 4.5mm x 130mm 1

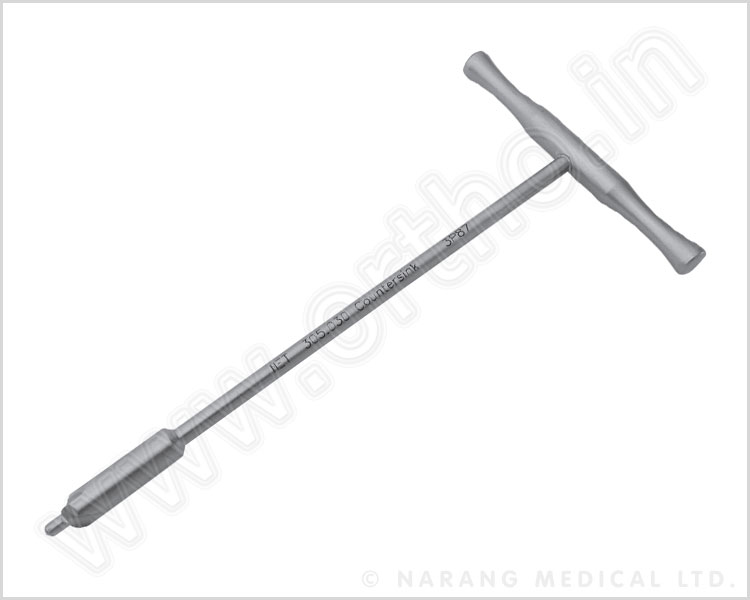

305.030 Counter Sink for 4.5 & 6.5mm Screws (8.0mm Head) 1

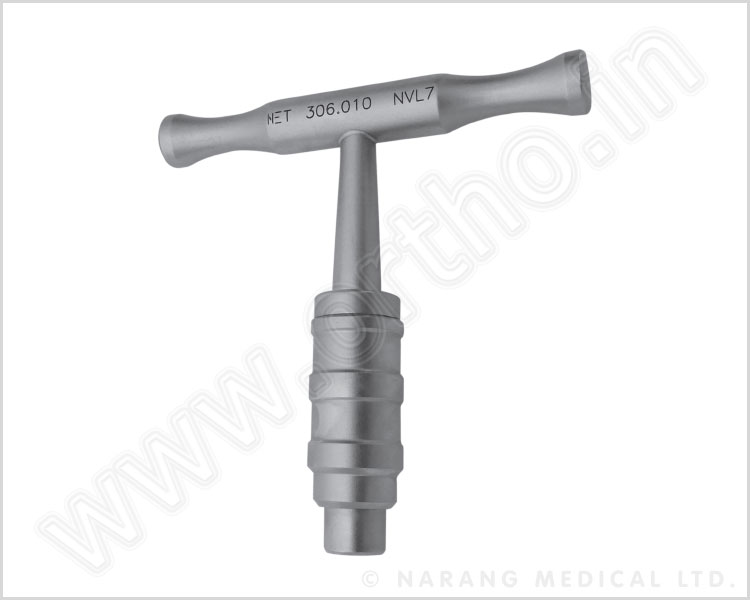

306.010 Quick Coupling Handle (T-Type) 1

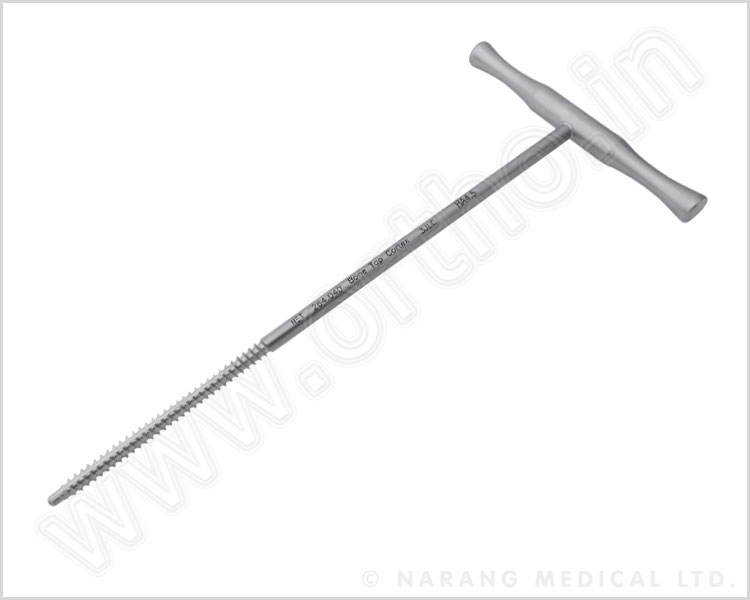

264.040 Bone Tap with Quick Coupling for 4.5mm Cortex Screws, L:130mm 1

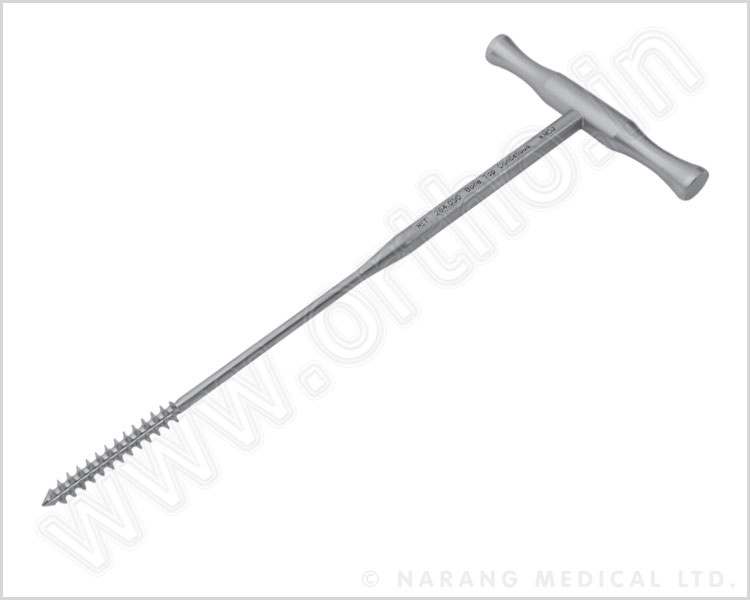

264.050 Bone Tap with Quick Coupling for 6.5mm Cancellous Screws 1
307.095 Insert Drill Sleeve 4.5/3.2mm 1

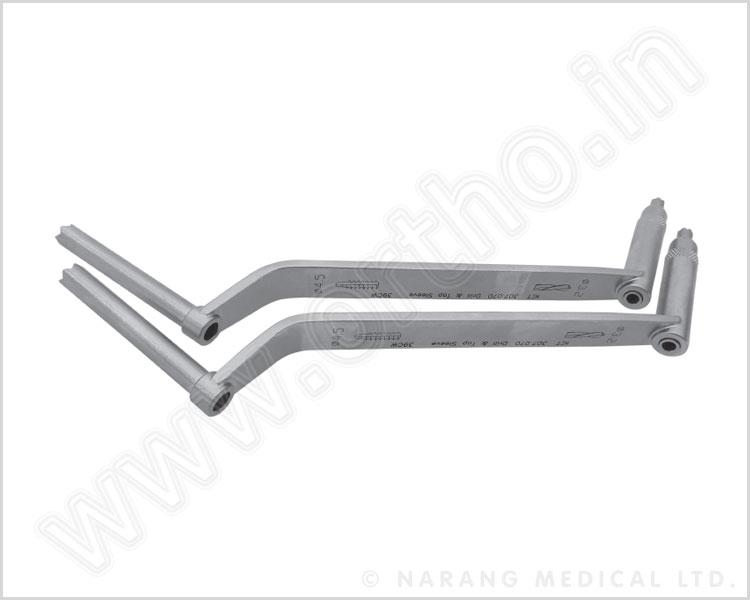

307.070 Drill & Tap Sleeve combined 3.2/4.5mm 1

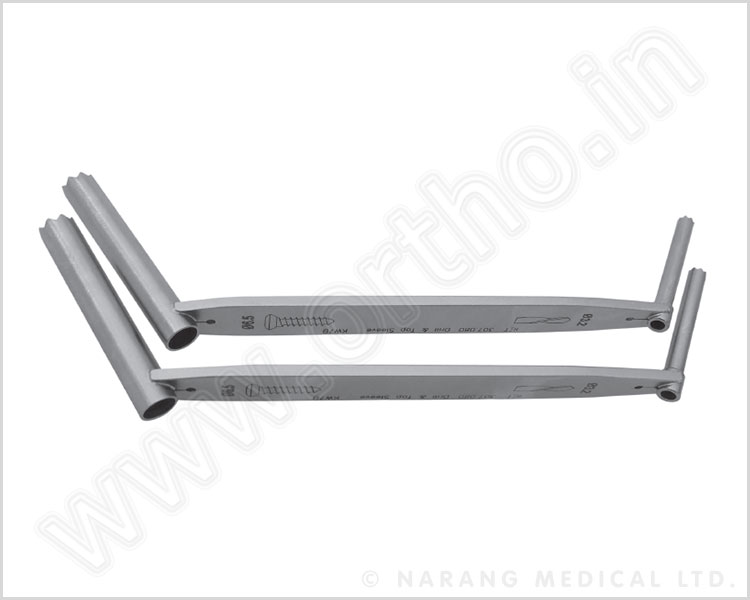

307.080 Drill & Tap Sleeve combined 3.2/6.5mm 1

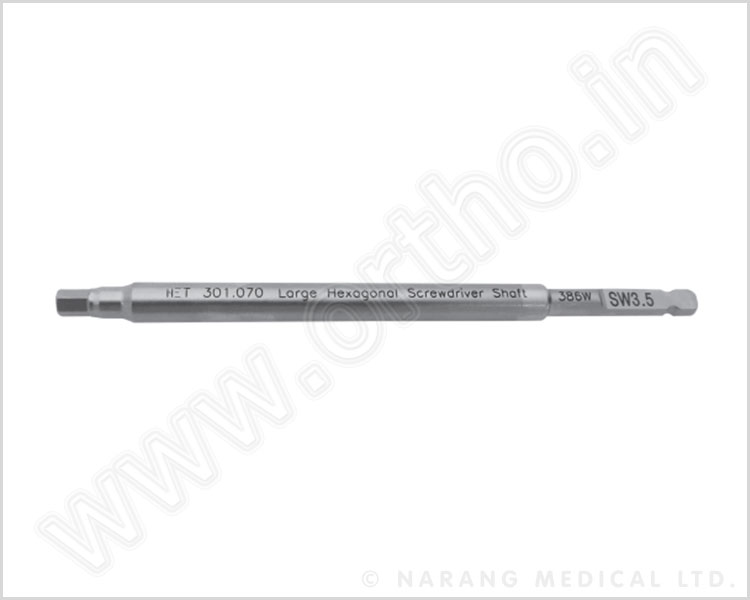

301.070 Large Hexagonal Screw Driver Shaft 1

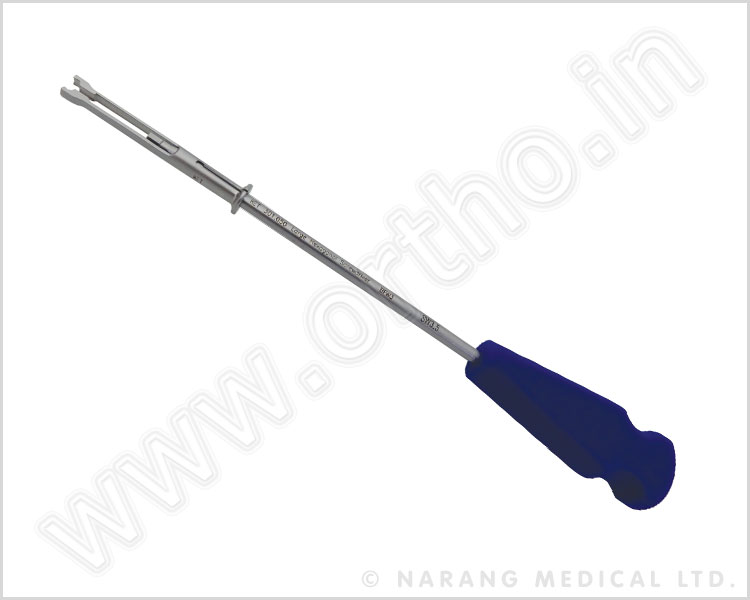

301.050 Large Hexagonal Screw Driver 1
303.020 Depth Gauge for 4.5mm & 6.5mm Screws 1

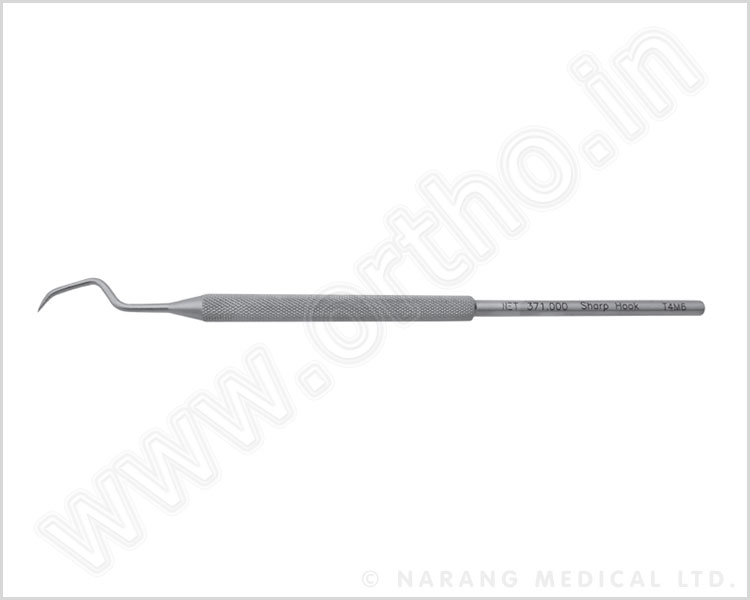

371.000 Sharp Hook 1
304.020 Large Neutral & Loaded Drill Guide Watch Video 1

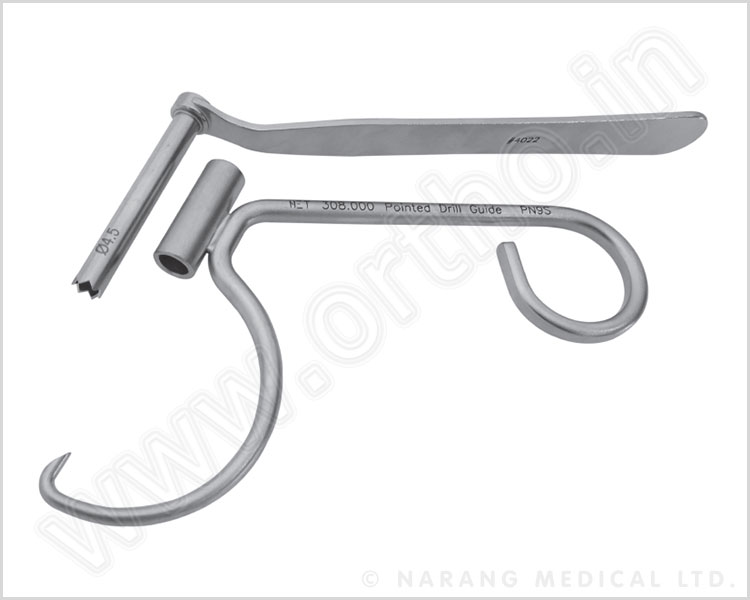

308.000 Pointed Drill Guide 1

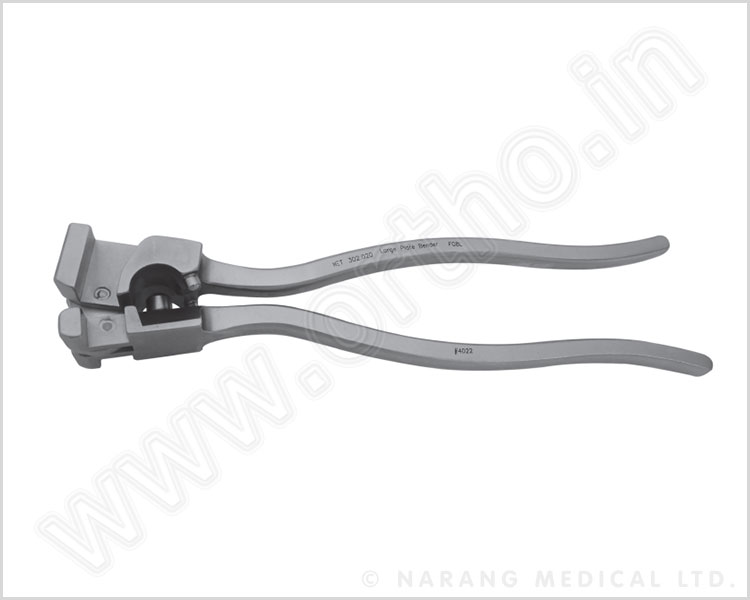

302.020 Large Plate Bender (pair) Watch Video 1
Locking Instruments
AS435.002 Drill Bit Ø 4.3mm, Length 221mm, Calibrated, 2-flute, for Quick Coupling 2
AS435.006 4.3mm Drill Sleeve for 5.0mm Safety Lock Screws 2
AS435.010 Torque limiting Screw Driver, 3.5mm Tip 1

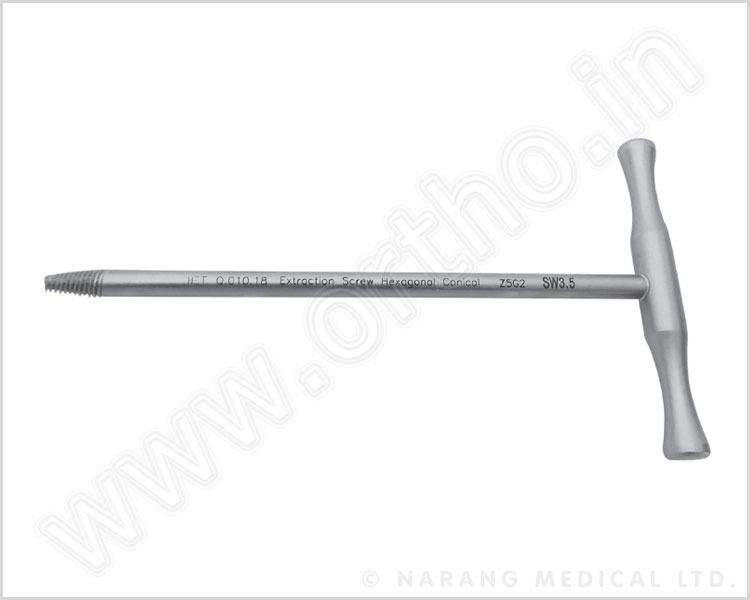

AS435.022 Extraction Screw (Left Hand Thread), Conical, for Screws Ø 4.5mm to 6.5mm 1

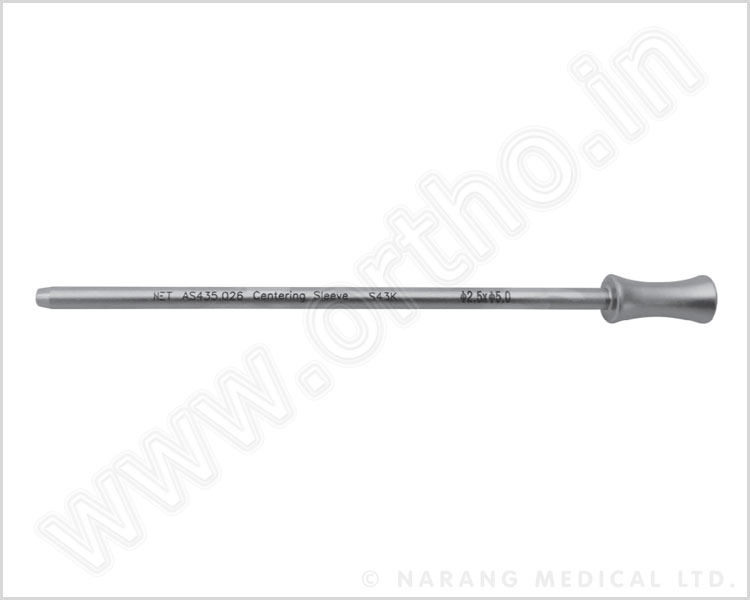

AS435.026 Centering Sleeve for Kirschner Wire Ø 2.0mm, Length 110mm 1

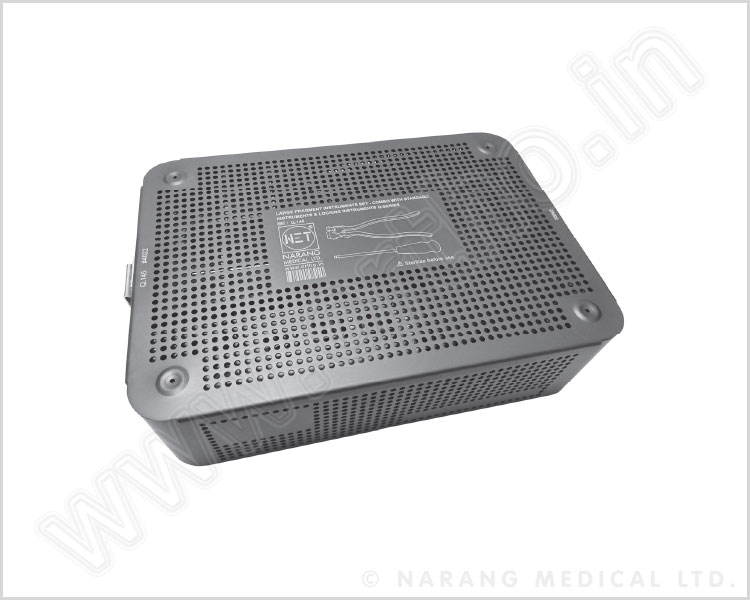

AS145.000 Empty Container
