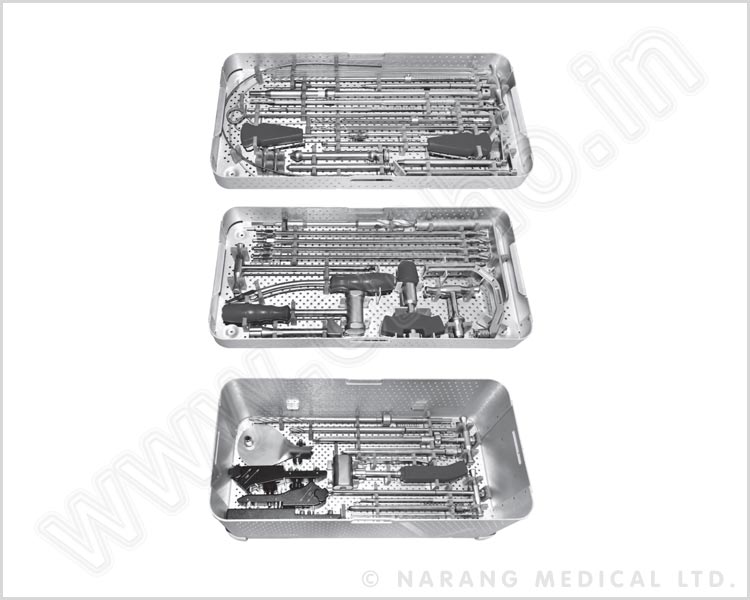

Instruments Set For GAMM-A Nails Q.1000 | ||
Codes | Set Consisting of : | Units |
Q.1000.01 | Proximal Targeting Device with Screw | 1 |
Q.1000.02 | Distal Targeting Device with Screw | 1 |
Q.1000.03 | Distal Guide Bar | 1 |
Q.1000.04 | Nail Handle | 1 |
Q.1000.05 | Connection Screw | 2 |
Q.1000.06 | Distal Targeting Device | 1 |
Q.1000.07 | Targeting Bar | 1 |
Q.1000.08 | Sliding Mass for Targeting Bar | 1 |
Q.1000.09 | Cannulated Awl | 1 |
Q.1000.10 | Hammer | 1 |
Q.1000.11 | Protection Sleelve | 1 |
Q.1000.12 | Drill Sleeve | 1 |
Q.1000.13 | Trocar | 1 |
Q.1000.14 | Fixture Block | 1 |
Q.1000.15 | Sliding Hammer | 1 |
Q.1000.16 | Soft Tissue Separator - short | 1 |
Q.1000.17 | T-Wrench for Gaam Nail Lag Screw & Coupling Screw | 1 |
Q.1000.18 | Hexagonal Screw Driver 3.5mm Tip | 1 |
Q.1000.19 | Hexagonal Screw Driver 4.0mm Tip | 1 |
Q.1000.20 | Hexagonal Screw Driver 5.0mm Tip | 1 |
Q.1000.21 | Locking Nut Wrench | 1 |
Q.1000.22 | Cleaning Guide Pin Round End | 1 |
Q.1000.23 | Reamer 17mm | 1 |
Q.1000.24 | Polyaxial Hex Wrench | 1 |
Q.1000.25 | Quick Coupling T-Handle with Chuck & Key | 1 |
Q.1000.26 | Soft Tissue Protector | 1 |
Q.1000.27 | L-Key 5mm | 1 |
Q.1000.28 | Distal Guide Bar Connector | 1 |
Q.1000.29 | Distal Guide Bar | 1 |
Q.1000.30 | Locking Nut Long | 1 |
Q.1000.31 | Locking Nut Short | 2 |
Q.1000.32 | Threaded Guide Pin | 3 |
Q.1000.9 to Q.1000.13 | Reamer Shaft with Fixed Reamers Dia: 9, 10, 11, 12 & 13mm (1 each) | 5 |
Q.1000.34 | Step Drill & Drill Stop | 1 |
Q.1000.35 | Nail Extractor | 1 |
Q.1000.36 | Allignment Rod | 1 |
Q.1000.37 | Drill Sleeve OD: 9.5mm and ID: 8.33mm | 1 |
Q.1000.38 | Drill Sleeve Fixture Rod | 1 |
Q.1000.39 | T-Type Drill Bil 5.84mm | 1 |
Q.1000.40 | Depth Guage | 1 |
Q.1000.41 | Medullary Tube | 1 |
Q.1000.42 | Cleaning Guide Pin | 1 |
Q.1000.43 | Drill Bit | 1 |
Q.1000.44 | Drill Bit 6mm | 1 |
Q.1000.45 | Drill Bit 5mm | 2 |
Q.1000.46 | Protection Sleeve | 1 |
Q.1000.47 | Drill Sleeve | 1 |
Q.1000.48 | Trocar | 1 |
Q.1000.49 | Guide Rod | 1 |
Q.1000.50 | Reaming Rod | 1 |

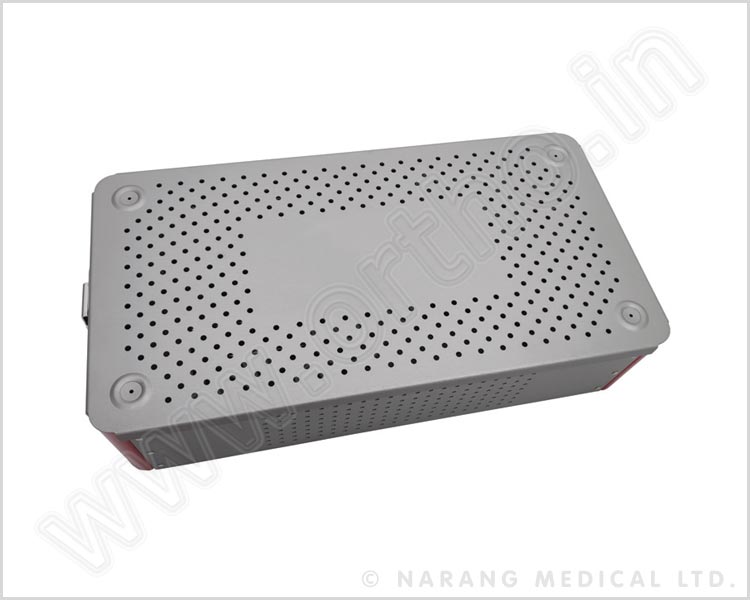

Q.1000.090 | Empty Container |
