Twisted Plate - SS
Code No. No. of Holes
246.002 2
246.003 3
246.004 4

Curved Plate - SS
Code No. No. of Holes
246.103 3
246.104 4
246.105 5
246.106 6

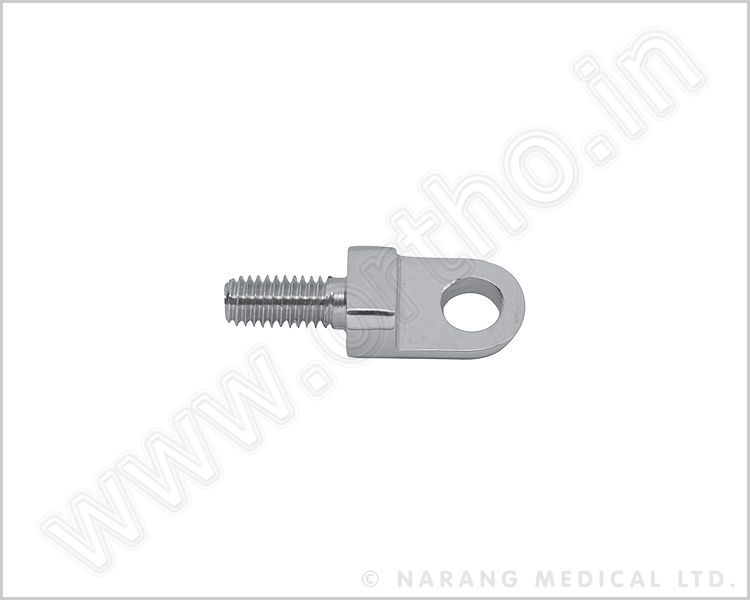

HINGE - Male, SS
Code No. 243.020

HINGE - Female, SS
Code No. 243.010

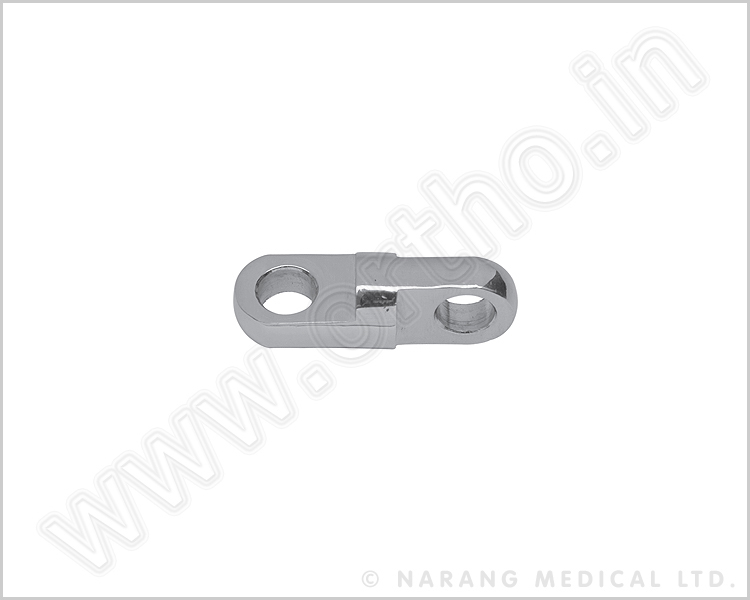

HINGE - 90°
Code No. 243.030

BUSHING, SS
Code No. 246.210

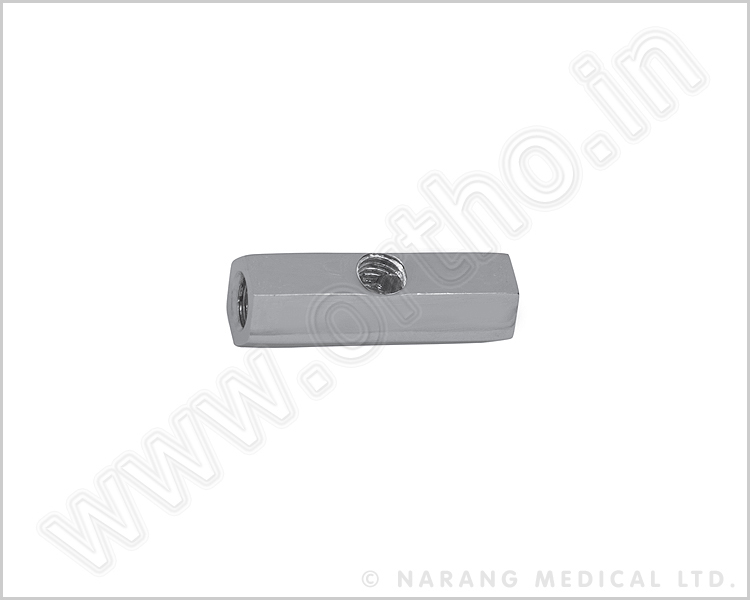

Threaded Socket, SS
Code No. Length mm
247.002 20
247.003 30
247.004 40
247.006 60

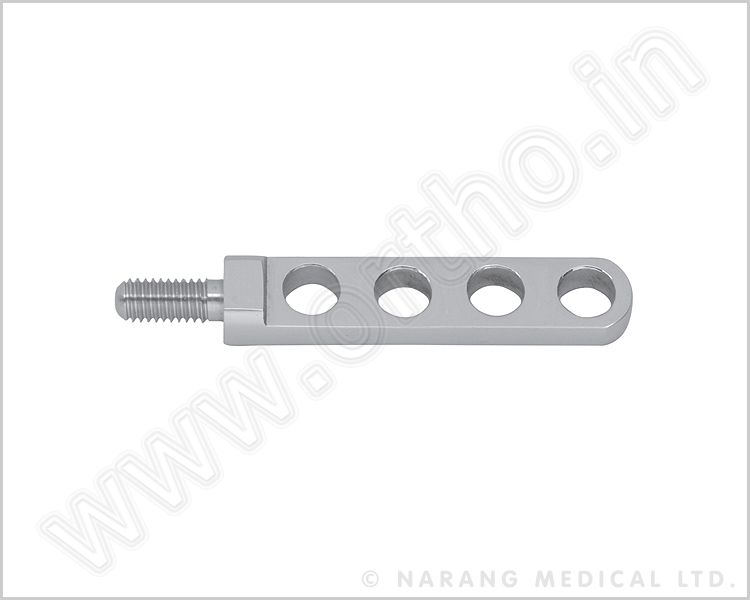

Post Male, SS
Code No. No of Holes
242.002 2
242.003 3
242.004 4

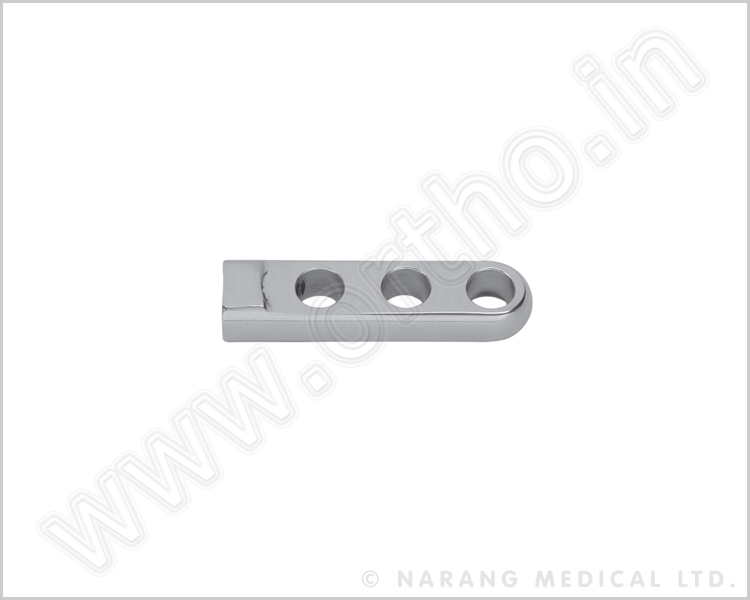

Post Female, SS
Code No. No of Holes
241.002 2
241.003 3
241.004 4

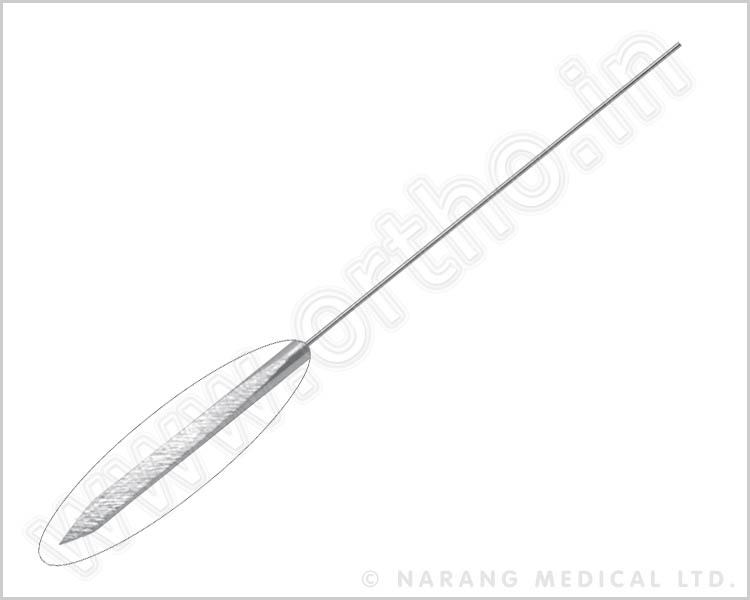

Ilizarov Wire Bayonet Point - SS
Code No. Dia. mm Length mm
248.010 1.5 400
248.012  1.8 400
248.022  2.0 400

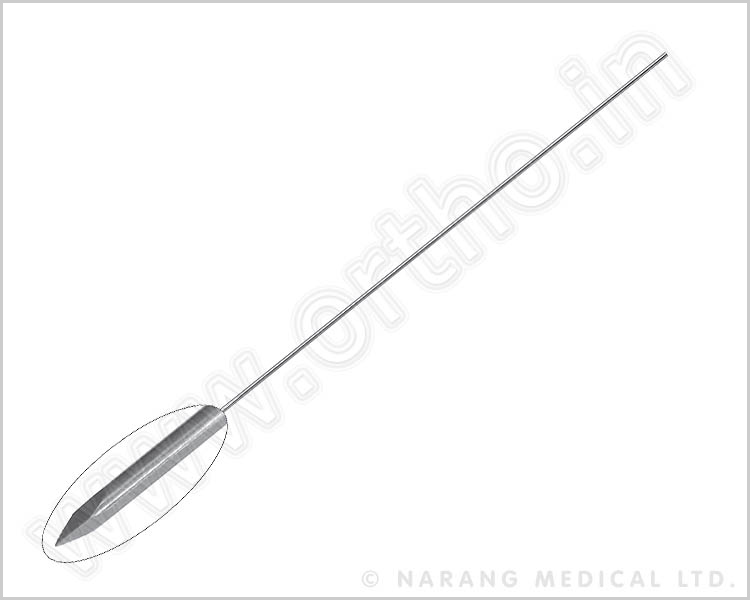

Ilizarov Wire Trocar Point - SS
Code No. Dia. mm Length mm
248.014 1.5 400
248.016 1.8 400
248.024  2.0 400

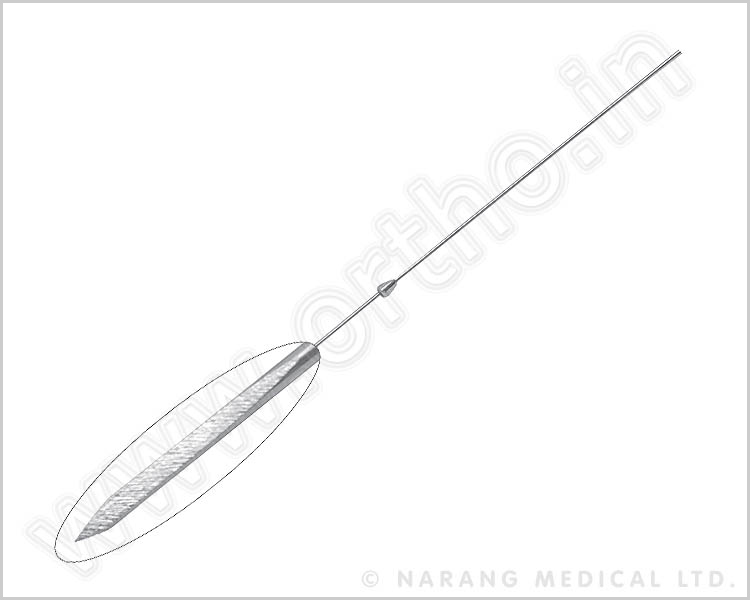

Olive Wire Bayonet Point - SS
Code No. Dia. mm Length mm
248.018 1.5 400
248.020 1.8 400
248.026 2.0 400

Olive Wire Trocar Point - SS
Code No. Dia. mm Length mm
248.018a 1.5 400
248.020a 1.8 400
248.028 2.0 400

Multi-pin Fixation Clamp, SS
Code No. Description
234.000 Multi-pin Fixation Clamp, SS

Shanz Pin Fixation Bolt, SS
Code No. Description
235.000 Shanz Pin Fixation Bolt, SS

Single Pin Fixation Bolt With Washer - Deluxe, SS
Code No. Description
235.101 Single Pin Fixation Bolt With Washer - Deluxe, SS

Oblique Support with Thread, SS
Code No. Description
236.000 Oblique Support with Thread, SS

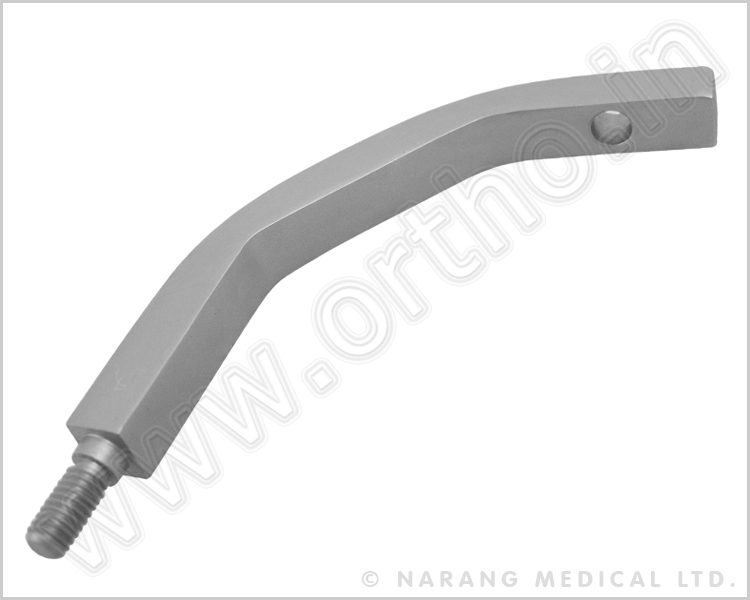

Oblique Support without Thread, SS
Code No. Description
236.010 Oblique Support without Thread, SS

Wire Fixation Bolt - Cannulated, SS
Code No. Description
249.101 Wire Fixation Bolt - Cannulated, SS

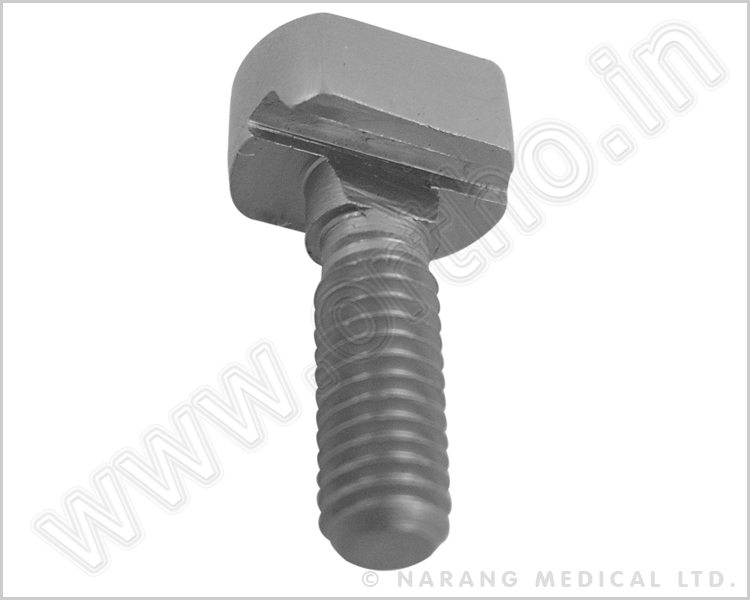

Wire Fixation Bolt - Slotted, SS
Code No. Description
249.102 Wire Fixation Bolt - Slotted, SS

Cannulated Bolt with Female Thread in Head, SS
Code No. Description
249.103 Cannulated Bolt with Female Thread in Head, SS

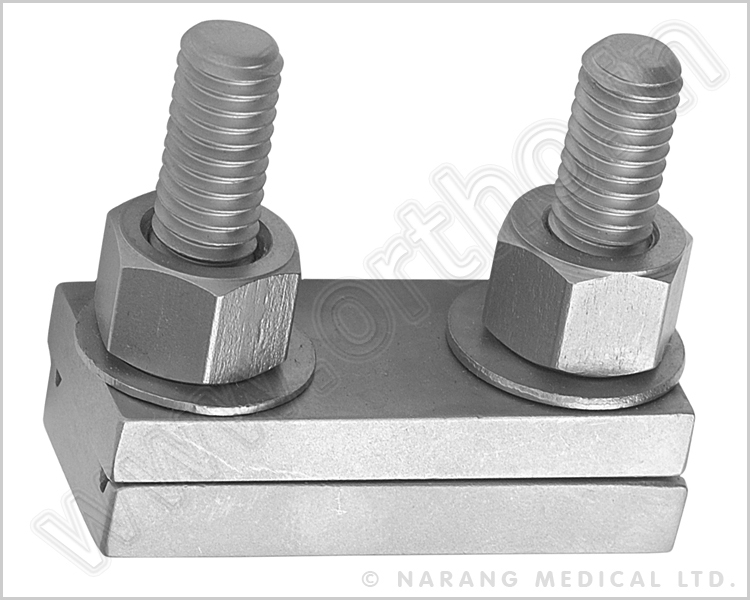

Wire Buckle, SS
Code No. Description
249.104 Wire Buckle, SS

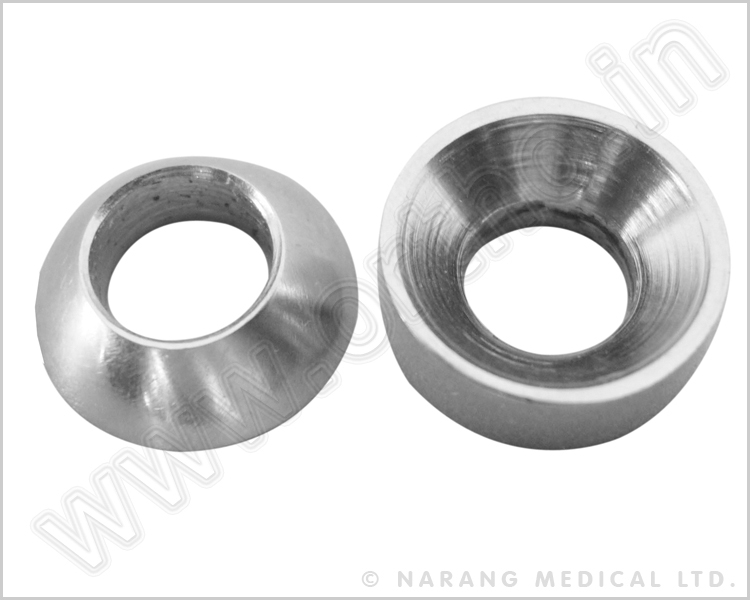

Conical Washer - Couple, SS
Code No. Description
249.105 Conical Washer - Couple, SS

Connection Bolt, SS
Code No. Description
249.106 Connection Bolt, SS

Nut-10mm, SS
Code No. Description
249.107 Nut-10mm, SS

Square Nut, SS
Code No. Description
249.108 Square Nut, SS

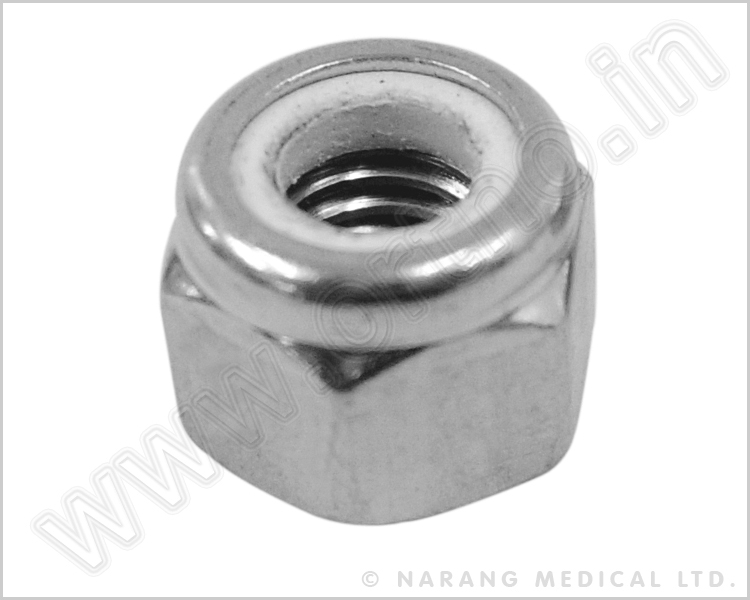

Nylon Insert Nut, SS
Code No. Description
249.109 Nylon Insert Nut, SS

Flat Sided Washer, SS
Code No. Description
249.110 Flat Sided Washer, SS

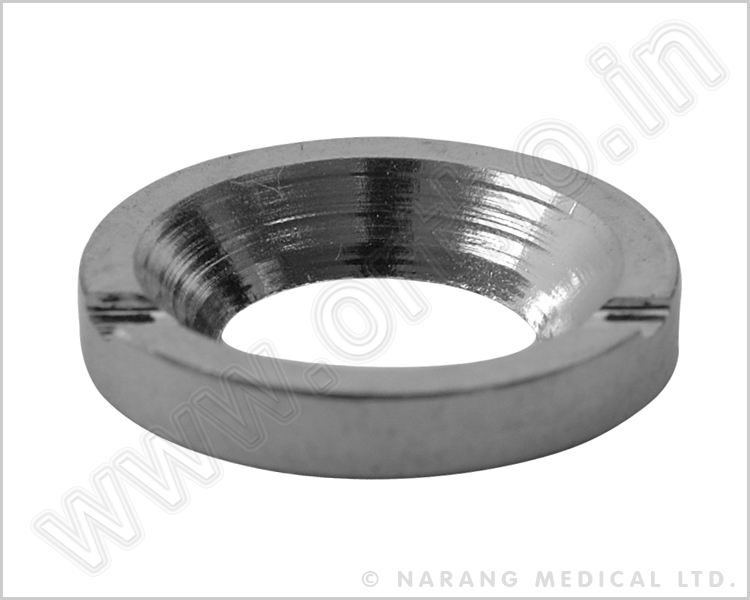

Slotted Washer, SS
Code No. Description
249.111 Slotted Washer, SS

Spacing Washer, SS
Code No. Description
249.112 Spacing Washer, SS

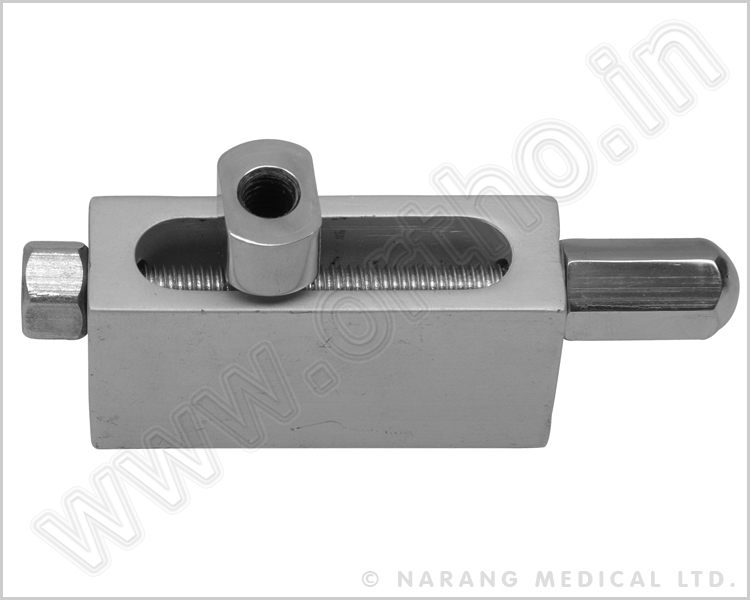

Repofix Device, SS
Code No. Description
249.113 Repofix Device, SS

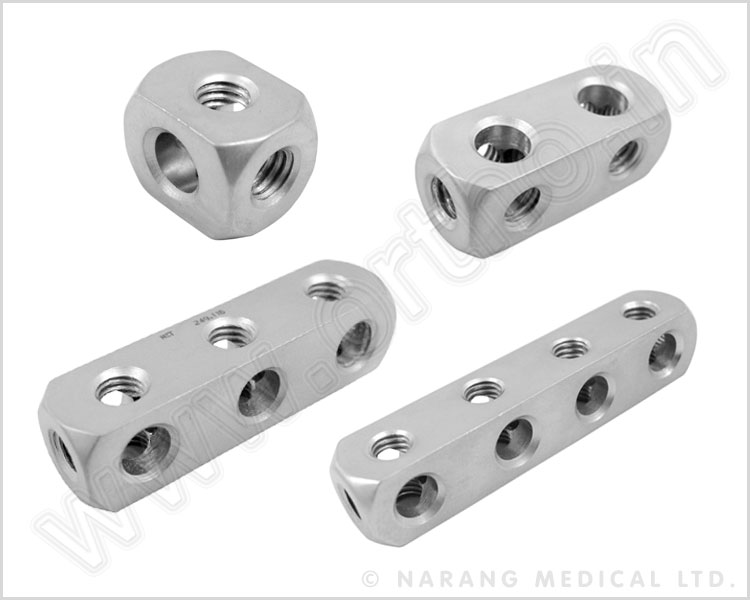

Wrenchocube, SS
Code No. Description
249.114 Wrenchocube One Hole, SS
249.115 Wrenchocube Two Hole, SS
249.116 Wrenchocube Three Hole, SS
249.117 Wrenchocube Four Hole, SS

Hinge Joint, SS
Code No. Description
249.118 Hinge Joint, SS

Spanner - 10mm, SS
Code No. Description
250.201 Spanner - 10mm, SS

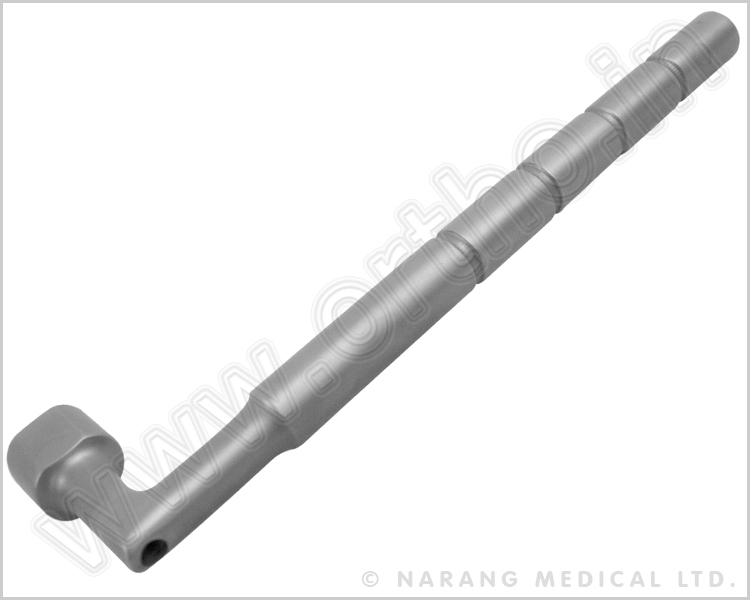

Angulated Wrench-10mm-Cannulated, SS
Code No. Description
250.202C Angulated Wrench-10mm-Cannulated, SS

Angulated Wrench-10mm-Slotted Bolt, SS
Code No. Description
250.202S Angulated Wrench-10mm-Slotted Bolt, SS

Box Spanner - 10mm, SS
Code No. Description
250.203 Box Spanner - 10mm, SS

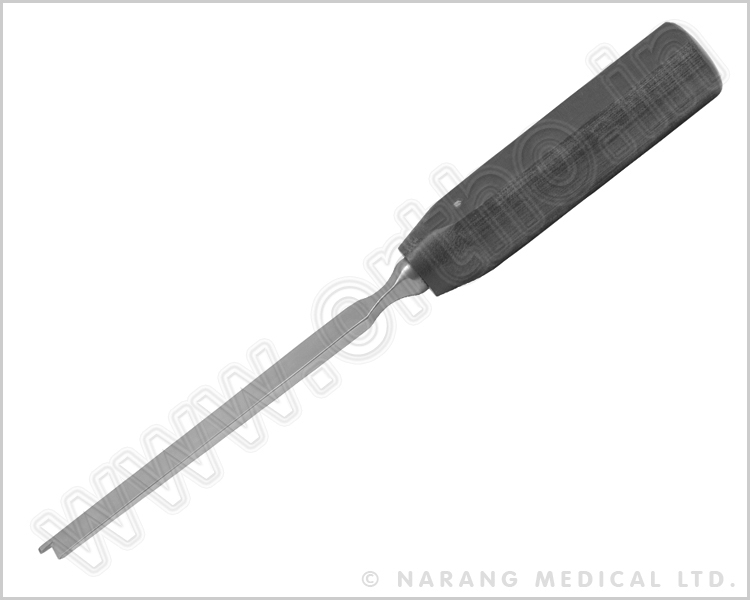

Corticotome, SS
Code No. Description
251.305 Corticotome - 5mm, SS
251.307 Corticotome - 7mm, SS
251.310 Corticotome - 10mm, SS
251.315 Corticotome - 15mm, SS

Mechanical Wire Tensioner, SS
Code No. Description
252.401 Mechanical Wire Tensioner, SS

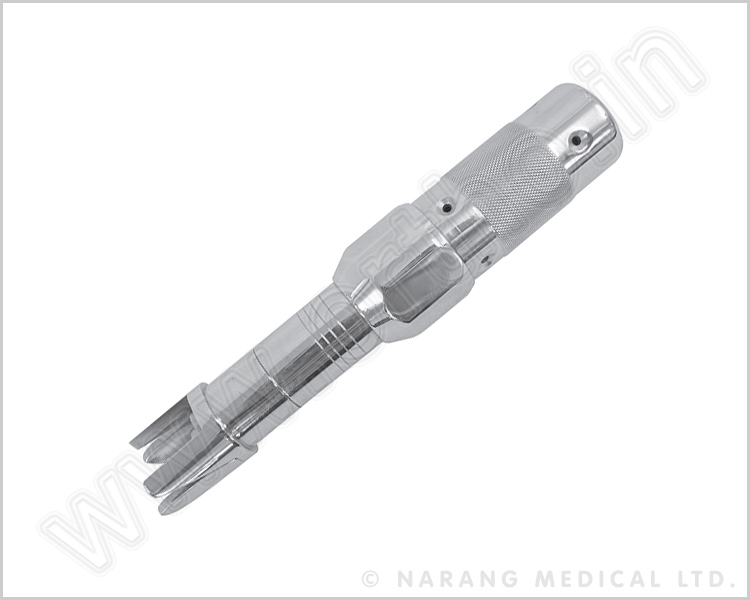

Wire Tensioner - Dynamometer, SS
Code No. Description
252.402 Wire Tensioner - Dynamometer, SS

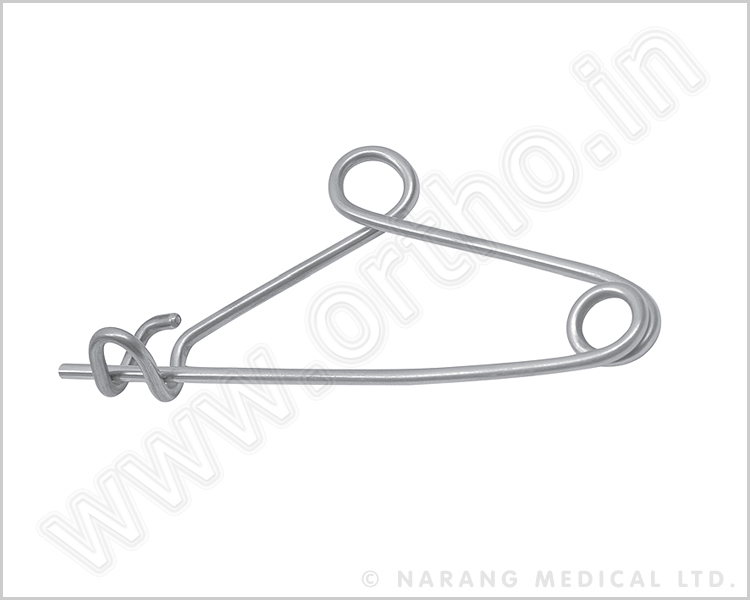

Washer Hanger, SS
Code No. Description
252.410 Washer Hanger, SS
